Morso

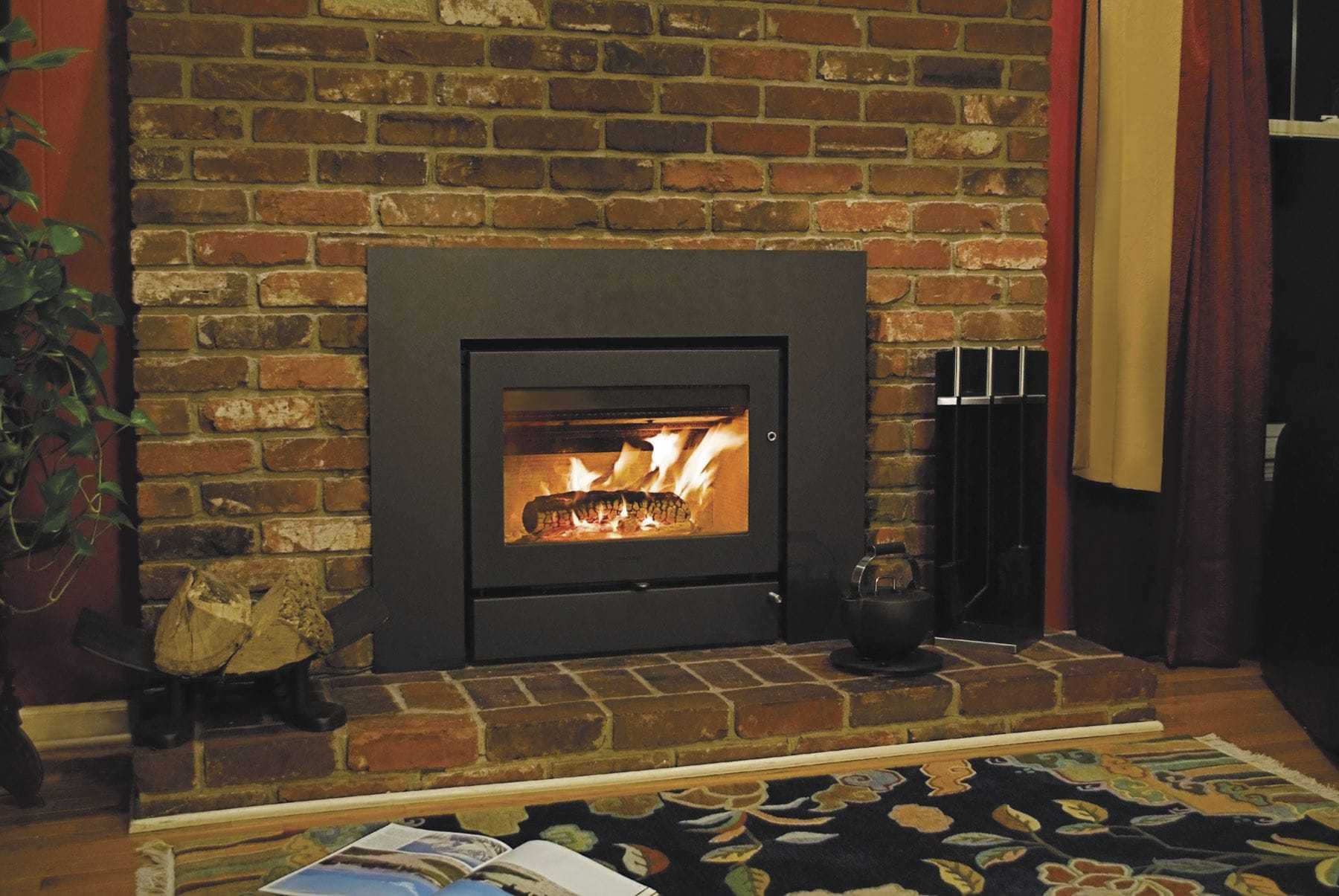

MORSØ 5660 STANDARD

NOT JUST A CAST IRON PROMISE FOR A MODERN LIFESTYLE

Designed to meet the simplicity of modern, contemporary lifestyle, the Morsø 5660 Standard insert offers the discerning homeowner an unparalleled ‘window of fire’. Clean lines, a huge window and a 4-sided ‘picture-frame’ make the 5660 Standard the epitome of Scandinavian Design and Function.

Continuing the Morsø heritage, the insert 5660 Standard is manufactured in fine grade cast iron using 98% recycled material; it incorporates ‘state of the art’ non-catalytic combustion technology for environmentally friendly operation.

The insert 5660 Std has been awarded the Nordic Swan Eco-label, a public environmental certification which sets high standards not only in terms of low particle emissions and high efficiency, but it also recognizes Scandinavian companies that actively seek to reduce their ‘Carbon footprint’ also through environmentally sound production practices and recycled packaging.

TECHNICAL DETAILS

FEATURES

  • Convection Heat
  • 10 year limited warranty
  • Gasketed seams for tight seals
  • Chromium treated internal castings for durability
  • Reversible flue collar
  • Non catalytic clean burn technology
  • Clean-burning air wash system
  • Pre-heated combustion air
  • Primary air supply
  • Pre-heated secondary air supply
  • Removable handle

FUEL

  • Wood

COLOURS

  • Black

APPROVALS

  • N/EN 13240
  • EPA Approval



Maximum Heat BTU/hr) 50,000
Test Fuel Load 10.43 lbs
Particulate Emissions 4.5 grm/hr
Log Size 20″
Max. Area Heated 2200 ft²
Firebox Dimensions 20¾” x 11″D
Firebox opening 28¾”W x 19¼”D x 21″H
Firebox volume/capacity 1.49 ft³
Gross Weight 275 lbs
Outside Air Supply Available
Mobile Home Approved No
Washington State Compliant
Optional:
3-sided wide trim kit $ 40″(W)x25″ (T)
4-sided wide trim kit 40″ (W)x33¾” (T)

CLEARANCES TO COMBUSTIBLES

Basic Clearance using single wall pipe top vent
Stove to side wall 17″
Stove to top 28½”
Stove to side trim 8″
Stove to mantle 28½
When the elevation of the floor is greater than 12,5″ from the bottom of the door glass, the floor in front of the fireplace. extending out 25″, requires thermal protection of 1.5″ thick mineral fiber millborad with value of….”(then the rest of the value calculations)”.
When the elevation of the floor is greater than 16.5″ from the bottom of the door glass, the floor in front of the fireplace extending out 25″, requires thermal protection of ¾” thick mineral fiber millboard with a value of…”(then the rest of the value calculations)”.
When the elevation of the floor is greater than 20.25″, from the bottom of the door glass. the floor in front of the fireplace, extending out 16″. requires only non-combustible material.

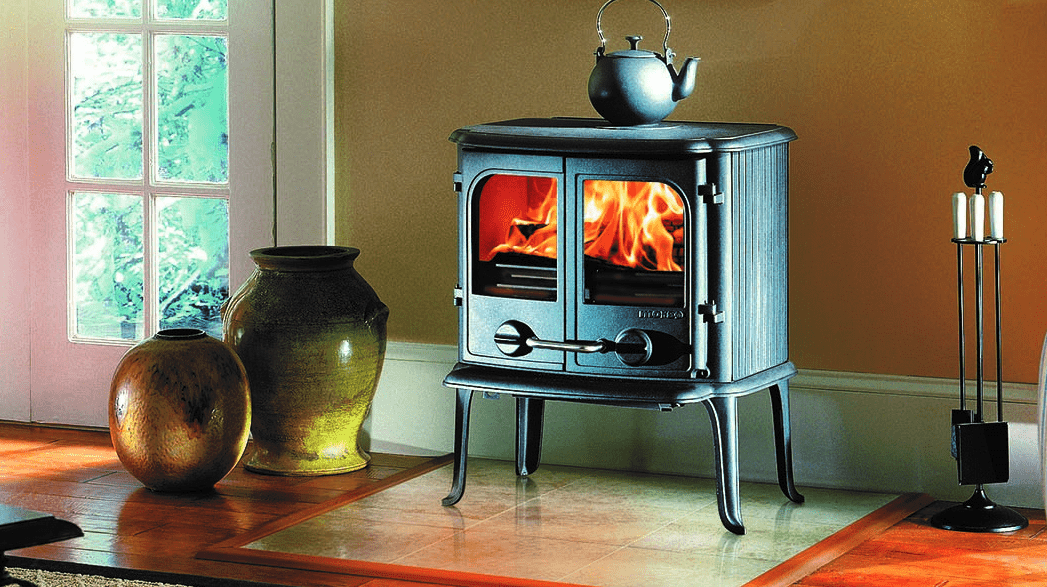

morso-2110MORSØ 2110

THE MORSØ 2110 IS A VERSATILE AND ELEGANT WOOD STOVE SUITABLE FOR MOST HOMES.

The Morsø 2110 is an elegant double-door cast iron wood stove with an aesthetic style and is at home in both contemporary and traditional settings.

The large stay-clean glass panel provides an excellent view of the fire while the stove is operating in its most efficient mode. At 42,000 Btu, Morsø 2110 is sized to heat medium-sized areas (up to 1,400 sq ft) and accepts 18” length wood for overnight burning. The clean burning, non-catalytic design offers a simple, efficient and durable heat source that you can enjoy for years to come.

Morsø 2110 wood stove is equipped with a heavy-duty ash pan that makes ash removal effortless without the need to manually shovel ashes out of the firebox. A 6″ reversible flue collar provides installation flexibility to vent directly off the top or rear of your stove.

An optional outside air kit is available with this wood stove in cases where outside combustion air is required.

TECHNICAL DETAILS

FEATURES

  • Radiant Heat
  • 10 year limited warranty
  • Gasketed seams for tight seals
  • Chromium treated internal castings for durability
  • Reversible flue collar
  • Non catalytic clean burn technology
  • Clean-burning air wash system
  • Pre-heated combustion air
  • Primary air supply
  • Pre-heated secondary air supply
  • Ash pan
  • Removable handle

FUEL

  • Wood

COLOURS

  • Black

APPROVALS

  • EN 13240
  • Norwegian Approval
  • EPA Approval

TECHNICAL DETAILS

Maximum Heat (BTU/hr) 42,000
Test Fuel Load 7.65 lbs
Particulate Emissions 4 4.3 grm/hr
Log Size 18.5″
Max. Area Heated 1400 ft²
Firebox Dimensions 18¾”W x 12½”D
Firebox volume/capacity 1.093 ft³
Gross Weight 279 lbs
Outside Air Supply Available
Mobile Home Approved No
Wasington State Compliant

CLEARANCES TO COMBUSTIBLES

Basic Clearance using single wall pipe top vent
Stove to side wall 22″
Stove to rear wall 20″
Stove to corner 16″



morso-7970MORSO 7970 WALL HUNG WOOD BURNING STOVE

The Morsø 7970 wood burner is a modern sculpture that will enhance the aesthetics of its surroundings.

The experience of natural fire enriches the room creating the cosiest environment. A refined wood burning stove with an uncompromising focus on details.

TECHNICAL DETAILS

FEATURES

  • • Convection Heat
  • • 10 year limited warranty
  • • Gasketed seams for tight seals
  • • Chromium treated internal castings for durability
  • • Reversible flue collar
  • • Non catalytic clean burn technology
  • • Clean-burning air wash system
  • • Pre-heated combustion air
  • • Pre-heated secondary air
  • • Tertiary air supply
  • • Ash pan

FUEL

  • Wood

COLOURS

  • Black

APPROVALS

  • EN 13240
  • Norwegian Approval
  • EPA Approval
  • DIN Approval



Maximum Heat (BTU/hr) 35,000
Test Fuel Load 4 lbs
Particulate Emissions 4.0 grm/hr
Log Size 9″
Max. Area Heated 1200 ft²
Firebox Dimensions 11,5″W x 10″D
Firebox volume/capacity 0.76 ft³
Gross Weight 298 lbs
Outside Air Supply Available
Mobile Home Approved Yes
Wasington State Compliant

CLEARANCES TO COMBUSTIBLES

Basic Clearance using single wall pipe top vent
Stove to side wall 23″
Stove to rear wall 5″
Stove to corner 7″

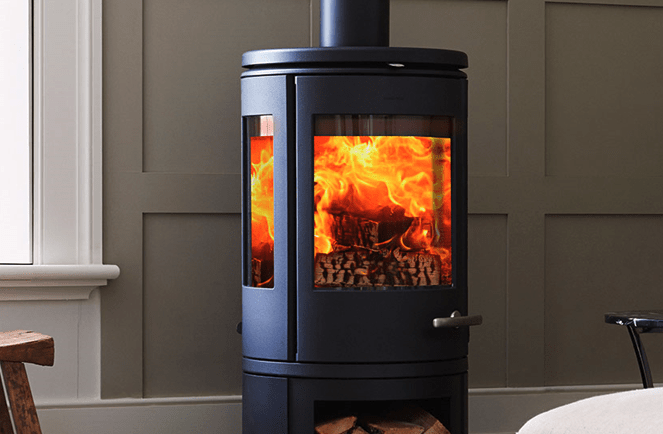

morso-7943MORSØ 7943

The Morsø wood-burning stove 7943 unobtrusively raises the combustion chamber with its spectacular glass sections just high enough up that the view of the fire’s flames can be enjoyed from anywhere in the room. We have developed a brand new combustion chamber in which the stones are coated in a soft anthracite-grey dye, which increases the robustness of the stones in the chamber.

Morsø 7943 is available with with plain base or log storage.

TECHNICAL DETAILS

FEATURES

  • • Convection Heat
  • • 10 year limited warranty
  • • Gasketed seams for tight seals
  • • Chromium treated internal castings for durability
  • • Reversible flue collar
  • • Non catalytic clean burn technology
  • • Clean-burning air wash system
  • • Pre-heated combustion air
  • • Pre-heated secondary air
  • • Tertiary air supply
  • • Ash pan

FUEL

  • Wood

COLOURS

  • Black

APPROVALS

  • EN 13240
  • Norwegian Approval
  • EPA Approval
  • DIN Approval





Maximum Heat (BTU/hr) 35,000
Test Fuel Load 4 lbs
Particulate Emissions 4.0 grm/hr
Log Size 9″
Max. Area Heated 1200 ft²
Firebox Dimensions 11,5″W x 10″D
Firebox volume/capacity 0.76 ft³
Gross Weight 357-383 lbs
Outside Air Supply Available
Mobile Home Approved Yes
Wasington State Compliant

CLEARANCES TO COMBUSTIBLES

Basic Clearance using single wall pipe top vent
Stove to side wall 23″
Stove to rear wall 5″
Stove to corner 7″
